MULTIJUMP TESTER Ⅱ

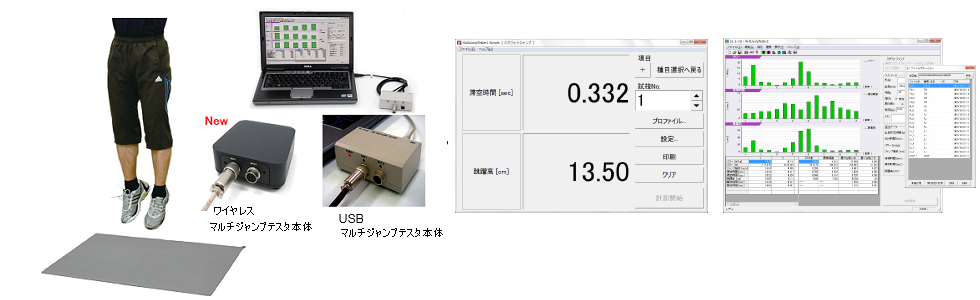

MULTIJUMP TESTER is a Jump measurement and athletic ablity evaluation system. It can be used with a measurement program that supports wireless Bluetooth(Ver.2.0 or later) connection. Based on the ON / OFF information of the MAT SWITCH, Suggestions are provided immediately on the screen to improve the spring ability during the successive Jumps. Its a simple system that can be easily connected to a computer with a single USB cable. Supported Jump types are Vertical jump / Drop jump / Continuous rebound jump / Hurdle jump. Calculation items: Jump height / contact time / flight time / jump indexs (RJ index, etc.) Index of spring ability is calculated. Along with the Jump parameters the direction of footwork is also calculated to see the agility and nimbleness.

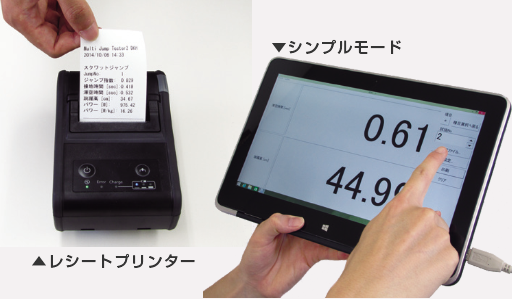

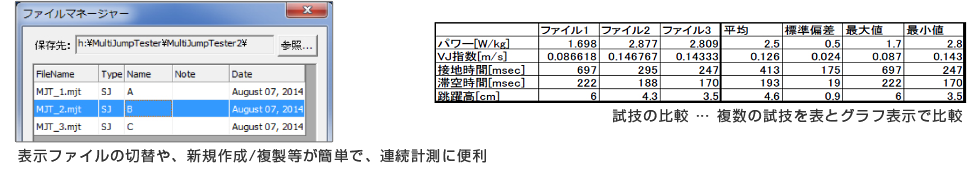

Different Modes of Start are available and can be selected according to the situation and application. The [Simple Mode], which can be easily used at measurement sites, allows immediate feedback to the subject by using the optional receipt printer (via Bluetooth connection). In the [Normal mode], which has the same operability as the previous multi-jump tester, a new "file management function (file manager)" and "comparison function" have been added, making continuous measurement and detailed analysis easier.

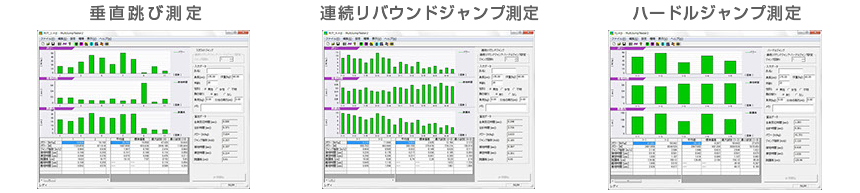

VERTICAL/DROP JUMP MEASUREMENT

1.Jump height

2.Power

3.Maximum jump

4.Ground contact time, flight time

CONTINUOUS REBOUND JUMP MEASUREMENT

1.Jump height and average jump height of each jump

2.Each Jump power and average power

3.Maximum Jump height in every attempt

4.Ground contact time, flight time
