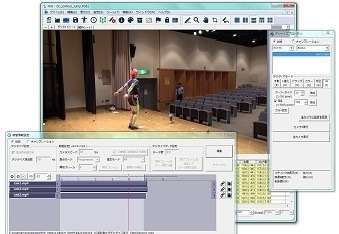

PHOTOGRAPH
1.Supports booth indoor and outdoor environments
2.Two-dimensional data can be acquired with one camera, and Three-dimensional data can be acquired with two or more cameras (Up to 8 cameras are supported)
3.Compatible with various video cameras - Mobile cameras to High-speed 4K resolution cameras
4.Automatic and Manual Digitization of body points using both reflective markers and color markers
5.Digitization of high-resolution images with the video cache function Comfortably
DIGITIZE CALIBRATION
1.Supports various 2D and 3D calibration methods(2D 4-point real length conversion / 2D, 3D DLT / 2D, 3D Panning, 3D CC )
2.Easy-to-do calibration Screens
3.The 3D CC method enables digitizing and analysis even in environments where calibration is difficult, such as in competitions.
4.Supports digitization with abundant auxiliary functions.
ANALYSIS
1.Stick picture display
2.Abundant analysis functions (Velocity, Displacement, Relative position, Point and Plane, Angular Measurements, center of gravity and virtual points, Euler angle, Line and Plane, Joint Torque).
3.Kinematic Analysis based on marker coordinates.
4.Import motion capture data (C3D file) and Floor reaction force for kinetic analysis (separate floor reaction force measurement system is required).
5.Digitized 2D/3D coordinates can be output in text format.
AI DIGITIZING FUNCTION
Marker based AI Digitization. AI functionality automatically identifies the body points on the captured video and acquires their coordinates and output into FD for analysis. 4K videos (4096 x 2160 pixel resolution) can also be used for AI digitization.

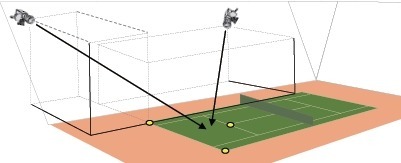

3D CC METHOD
Using this method, 3D analysis can be performed by calibrating with a minimum of 3 calibration points. Conventional 3D DLT requires 6 or more calibration points but with 3d CC method there is no problem even if the calibration points arranged flat; so we can use even the lines of the stadium or court. Eliminates the need to enter the measurement space for calibration work when shooting at competitions.
AUTOMATIC EXTRACTION OF SYNCHRONIZATION POINTS
By enabling the setting, Frame DIAS software will automatically detect the flash timing of the synchronizer.
SUPPORTS 4K VIDEO AND SPEEDS UP VIDEO PROCESSING
With the video cache function, you can comfortably analyze video even with 4K video. Only .MOV and .MP4 movie file formats can be used for the video cache function.
